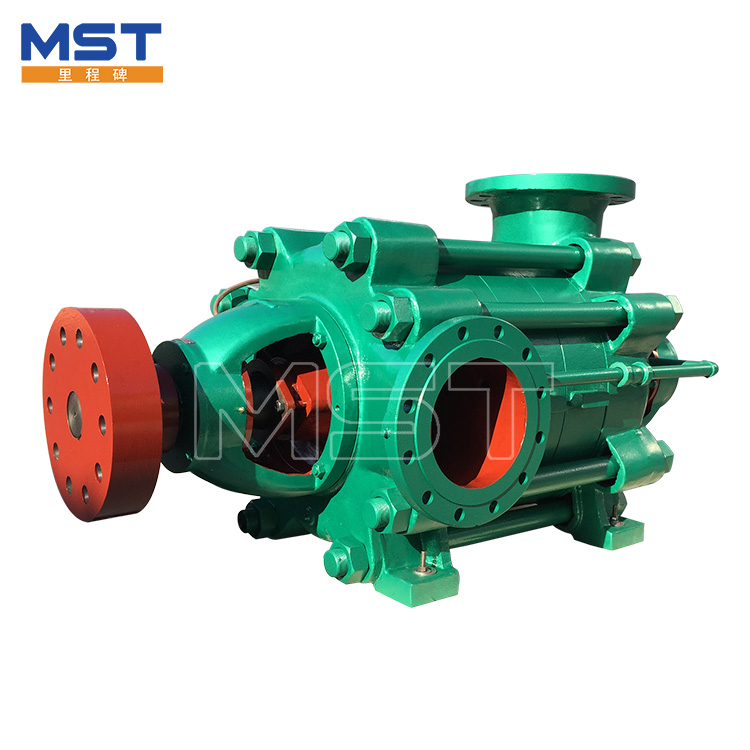

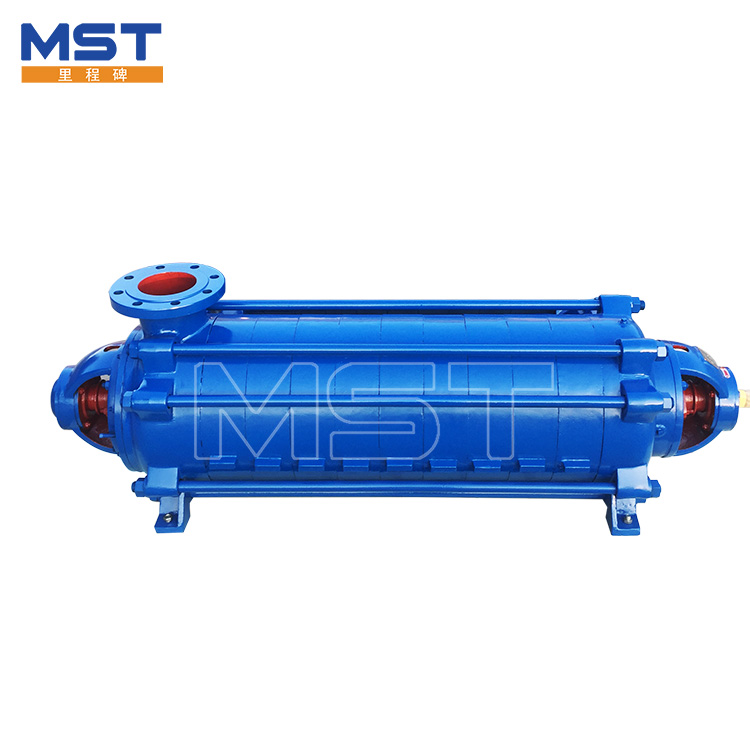

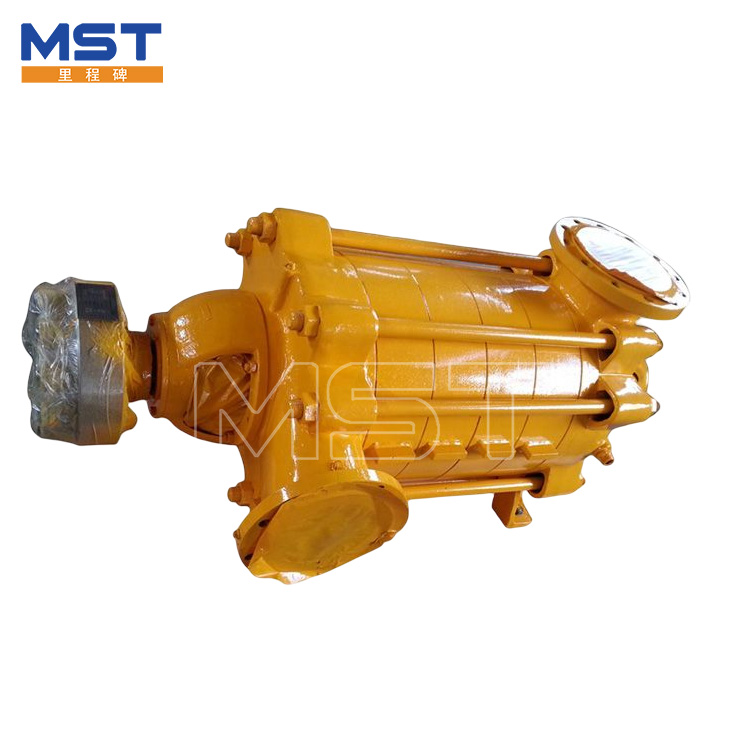

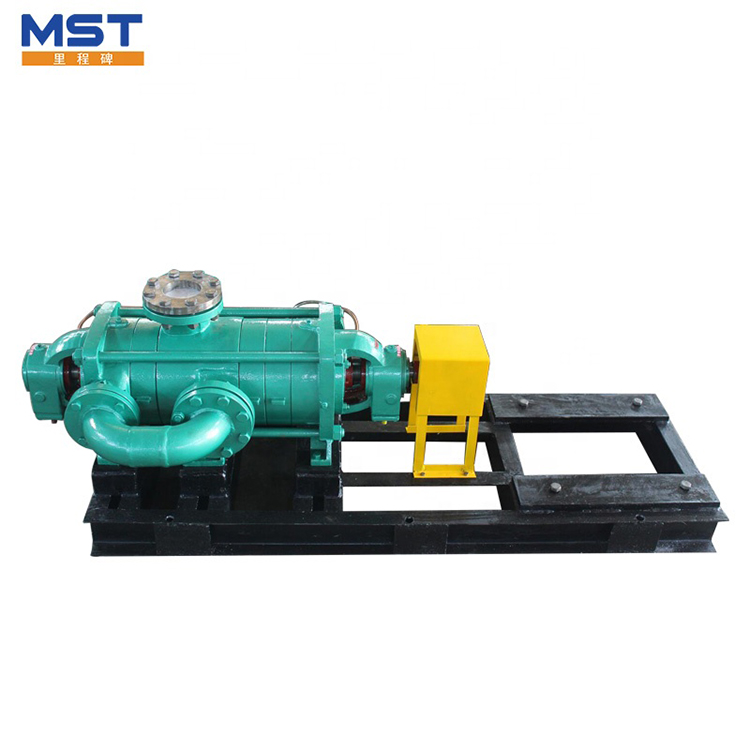

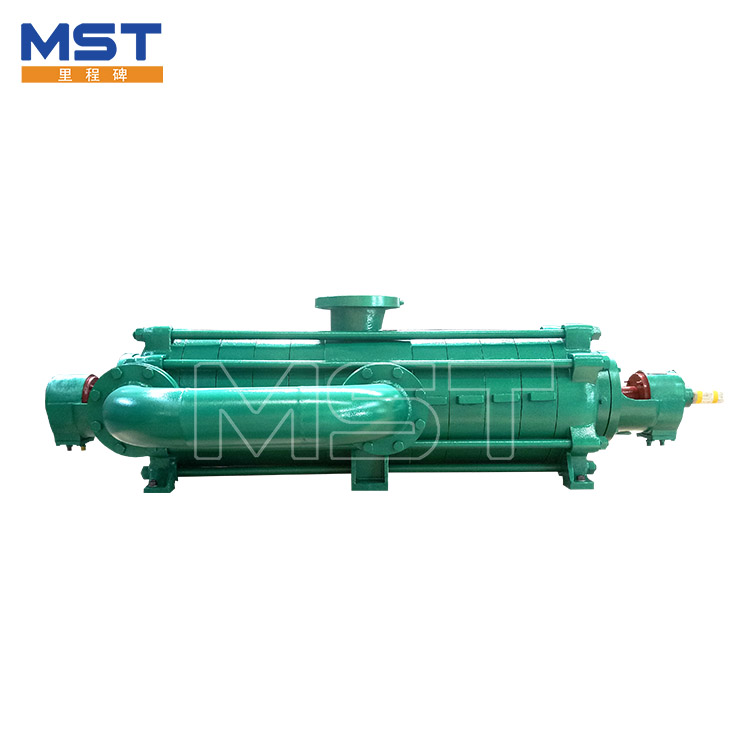

Multistage Centrifugal Pump 200kw

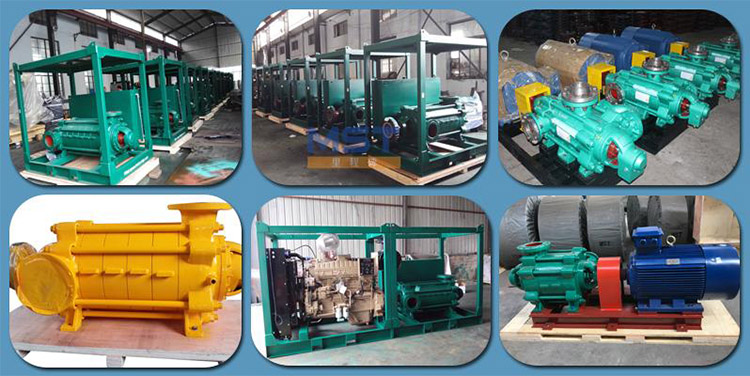

Milestone D series multistage centrifugal pumps are horizontal end suction type with horizontal inlet and vertical outlet, suitable for horizontal installation. The pump impeller is closed type. This pump could work with electric motor and diesel engine.

Specifications of Multistage centrifugal pump 200kw

Structure of the multistage centrifugal pump

Impeller

Closed radial impellers with single inlet. Suction impeller on the first stage to achieve a better NPSH value.

Balancing device

The axial thrust is balanced through holes on the impeller in combination with a blocking bush. The residual axial thrust is absorbed by the ball bearings

Shaft Seal

Packing seal or mechanical seal can be easily installed, for various application needed. In the seal area the shaft is fit with replaceable protection bushes.

Drive

Direct drive with electric motor through elastic joint. Suction end drive, clockwise direction of rotation; it is possible to supply the pump with shaft end on delivery side (anti-clockwise direction of rotation), or with drive on both sides.

Selection chart

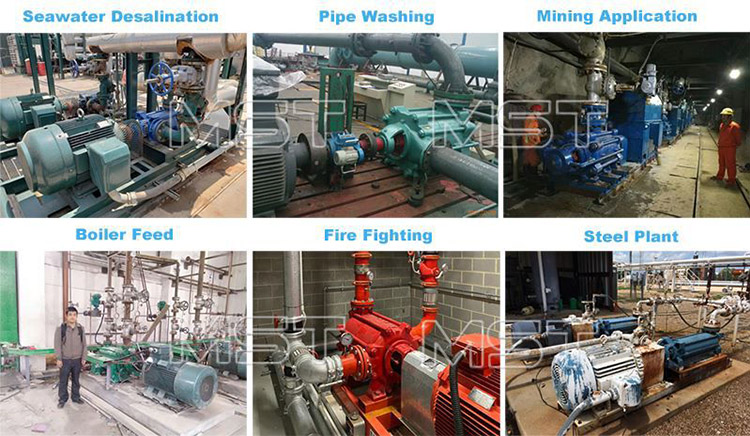

Applications
