High Pressure Multistage Water Pump
Clean Water High Pressure multistage Pump DescriptionHigh pressure multistage water pumps are horizontal, single suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontally and DG type is vertically.The shaft sealing of these pumps are seale
Focus Features:
High pressure multistage water pumps are horizontal, single suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontally and DG type is vertically.
Product Description
Clean Water High Pressure multistage Pump Description
High pressure multistage water pumps are horizontal, single suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontally and DG type is vertically.
The shaft sealing of these pumps are sealed with soft-packages. At the location of the shaft sealing, there is a renewable sleeve to protect the shaft.
The pumps are directly driven by the motor or diesel engine through the flexible coupling.
The rotation direction of the pumps are clockwise when view pump from driving end.
Type D,DG multistage pumps are used for feeding low and middle pressure boiler water or for pumping other middle pressure water.
The temperature of pumped medium of type D are not more than 110℃, and DG not more than 160℃.

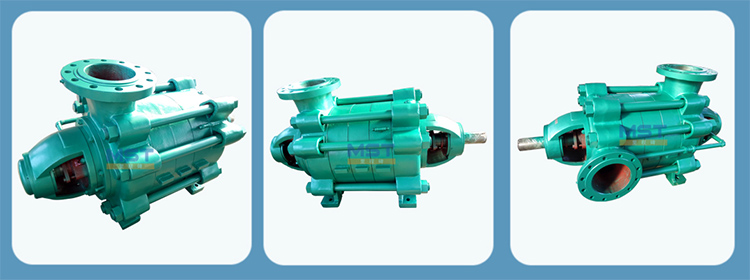

Pump Show
Features of high pressure multistage pump
Cast iron, duct alloy, carbon steel, zinc free bronze, silicon brass or stainless steel construction
(other materials available on request)
High efficiency double suction impeller
Durable, low noise, long life bearing
Premium quality mechanical seal
Electric or diesel drive
Clean Water High Pressure Pump Performance
D Type Multistage Pump Clear Water Performance | ||||
Type | Flow | Head | Speed | Motor Power |
m3/h | m | r/min | Kw | |
MD46-50x5 | 46 | 250 | 2950 | 55 |
MD85-45x6 | 85 | 270 | 2950 | 110 |
MD85-67x6 | 85 | 402 | 2950 | 160 |
MD120-50x7 | 120 | 350 | 2950 | 200 |
MD155-30x8 | 155 | 240 | 2950 | 200 |
MD155-67x8 | 155 | 534 | 2950 | 355 |
MD280-43x3 | 280 | 129 | 1450 | 160 |
MD280-43x9 | 280 | 387 | 1450 | 450 |
MD280-65x6 | 280 | 390 | 1480 | 500 |
MD360-40x7 | 360 | 280 | 1480 | 450 |
MD580-70X10 | 580 | 700 | 1480 | 1800 |
MD720-60x9 | 720 | 540 | 1480 | 1600 |

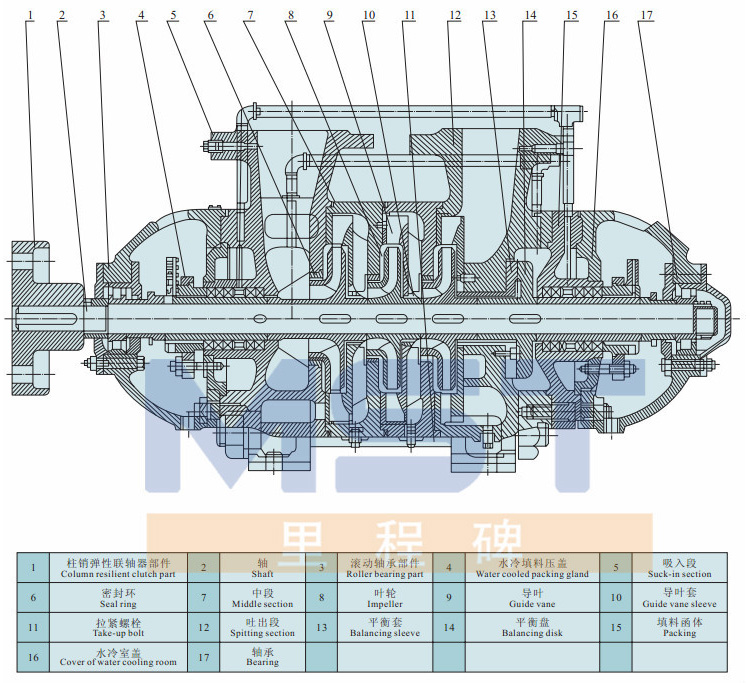

Structure

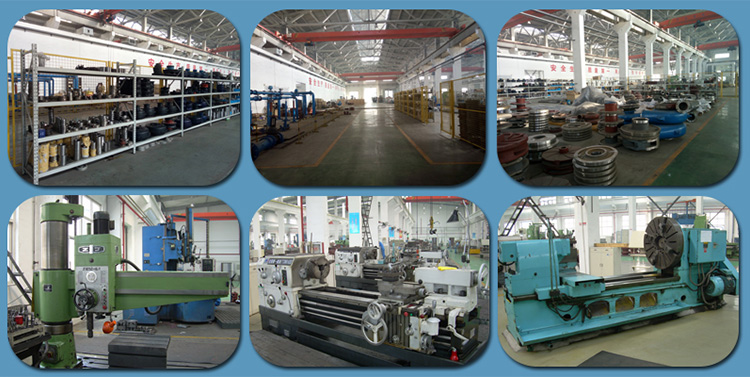

About us

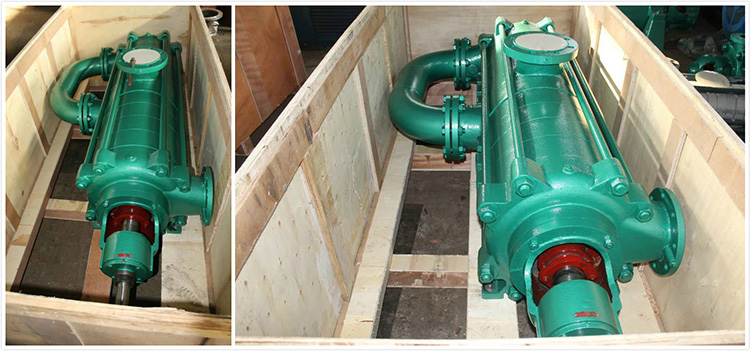

Packages
